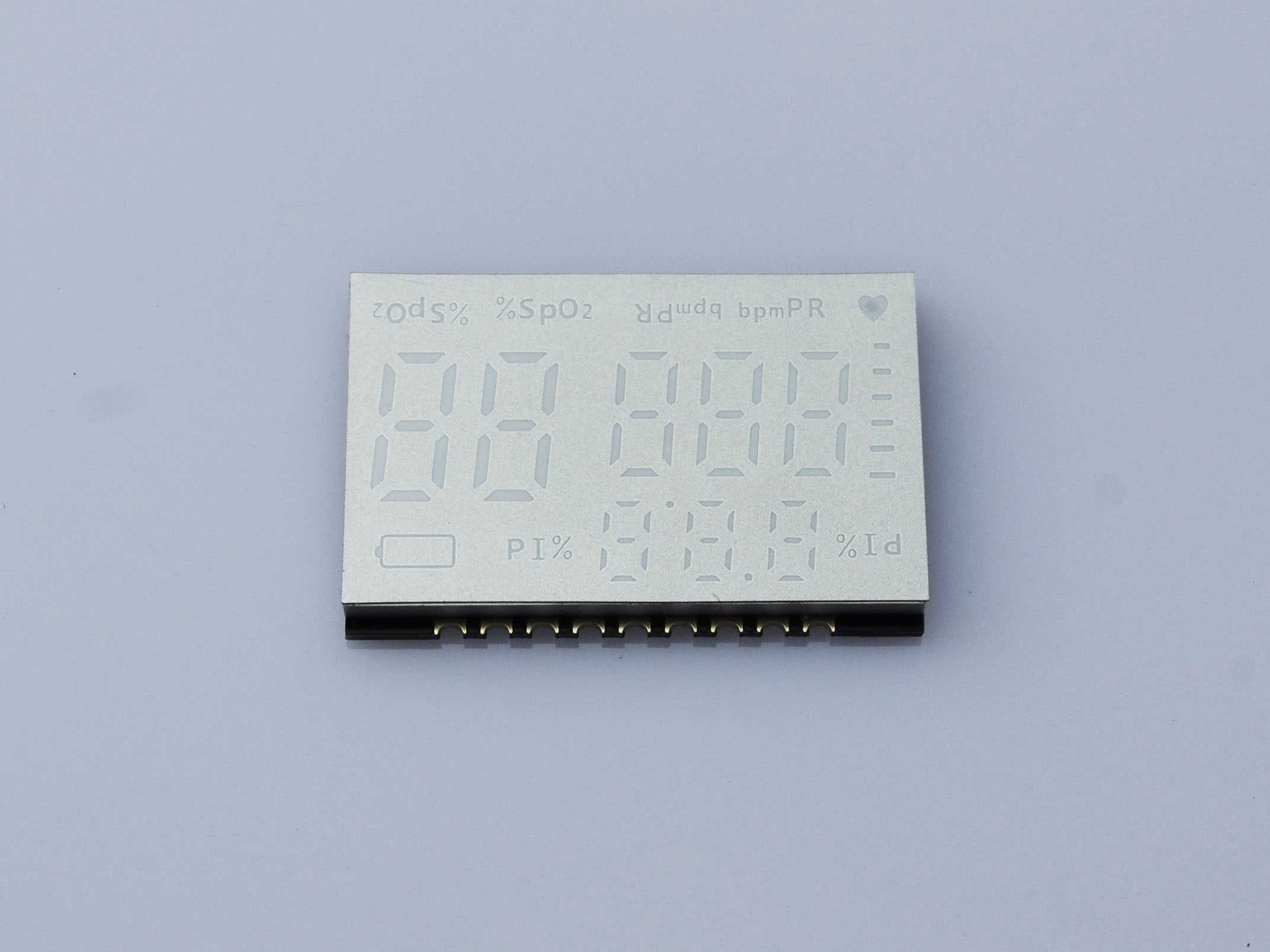

多位数码管ZB3332BS红光

  • 咨询热线:15626546861

产品说明书型号(PART NO.): ZB3332BS

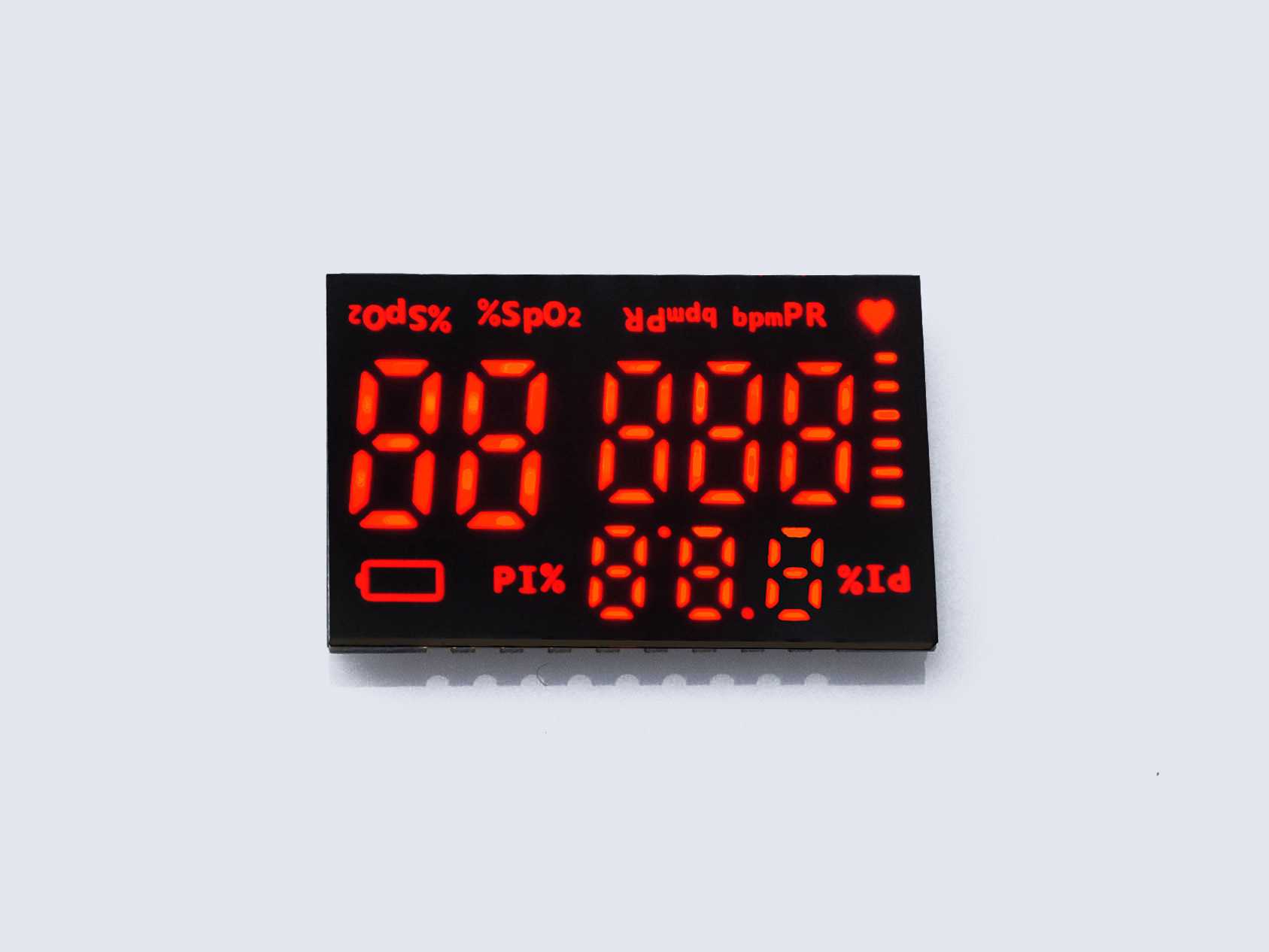

 1.智倍多位数码管ZB3332BS红光说明(Description):

发光颜色(Emitted Color):红光
外观颜色(Lens Color):黑、白两色
外形尺寸(Max Size):如结构尺寸图所示
极限参数(Absolute Maximum Ratings     建议使用驱动检测


参数(Parameter)单位(Symbol)极限值
(Maximum Rating)
单位(Unit)
功耗  (Power Dissipation)Pd42mW
脉冲电流(Peak Forward Current)Ifp100mA
直流电流(Continuous Forward Current) Forward )CurrentIfm20mA
反向电压(Reverse Voltage)VR5V
工作温度(Operating Temperature Range)Topr-40 → +85
储藏温度(Storage Temperature Range)Tstg -40 → +100
静电电压(Static Voltage)Var V


*焊接温度(Lead Sodering Temperature):260℃  for 3 seconds
*当工作温度高于25℃时,Ifm,Ifp和Id必须降低;电流降低率是-0.36mA/℃(直流驱动),或-0.86mA/℃
(脉冲驱动)功耗降低率是-0.75mW/℃。产品的工作电流不能大于对应工作温度条件Ifm或Ifp的60%。
For  operation above 25℃,  The Ifm Ifp & Pd must be derated, the Curent derating is –0.36mA/℃ for  DC
drive and  -0.86mA/℃ for Pulse drive, the power dissipation is  -0.75mW/℃. The product working current
must not more than the 60% of the Ifm or Ifp according to the working temperature.

2.光电特性(Optical-Electrical Characteristic     建议使用驱动检测


参数(Parameter)测试条件
(Test CONDITING)
单位(Symbol)MinTypeMax单位(Unit)
发光强度 (Luminous Intensity)IF=10mAIv70 90Mcd
正向电压 (Forward Voltage)IF=10mAVF1.8-2.3V
反向电流 (REVERSE Current)VR = 5VIR-10 uA
波长     (Peak Wavelength)IF=10mAλp620-625nm
带宽     (Spectral Bandwidth)IF=10mA△λ-40-nm
查看角度 (View Angle)IF=10mA2θ1/2-60-Deg.



3.智倍多位数码管ZB3332BS红光结构尺寸(Mechanical Outline:
(未注尺寸公差 Unspecified Tolerances is: ±0.2    发光颜色:红色

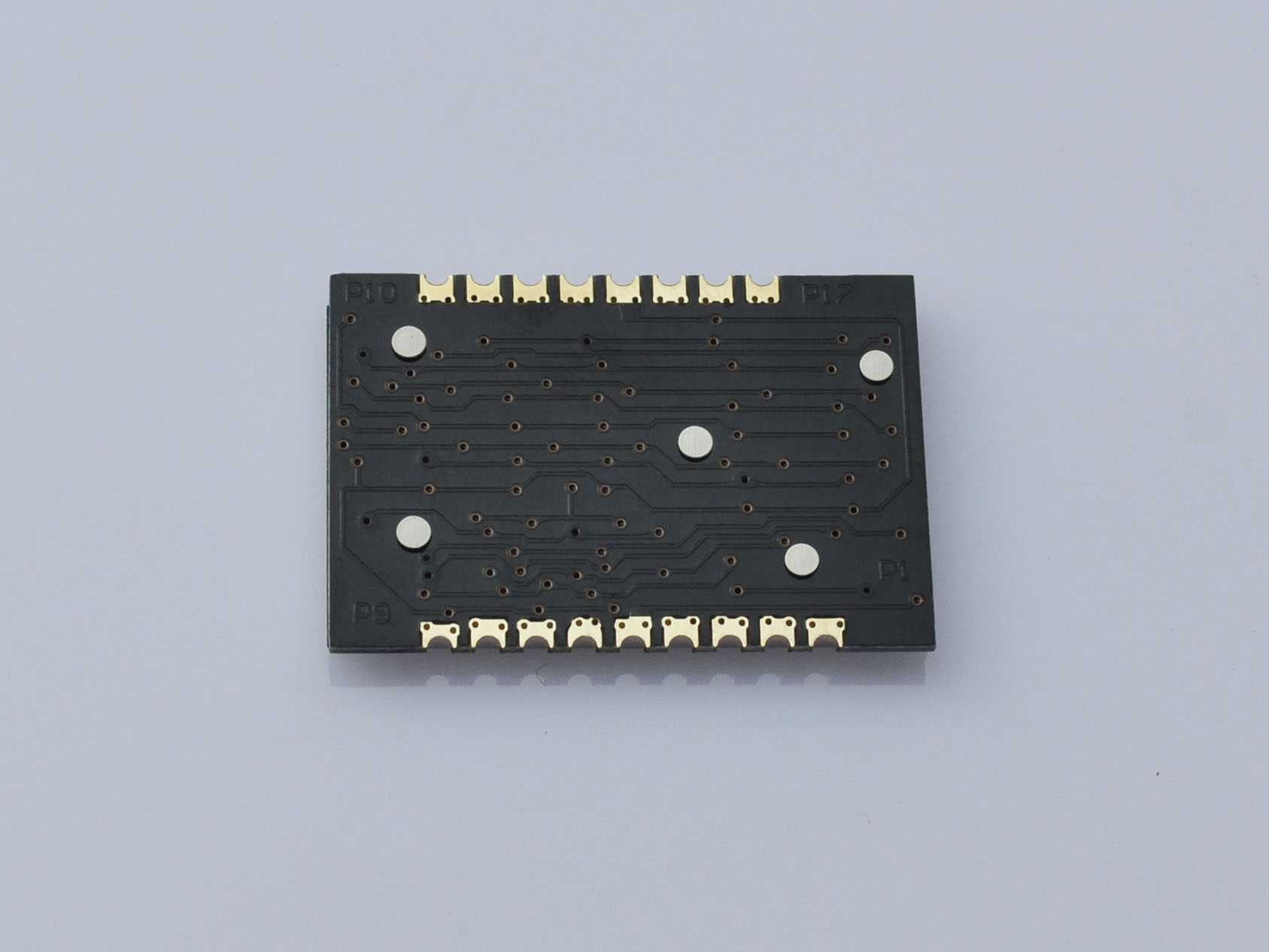

信恩多位数码管XE3332BS红光引脚图

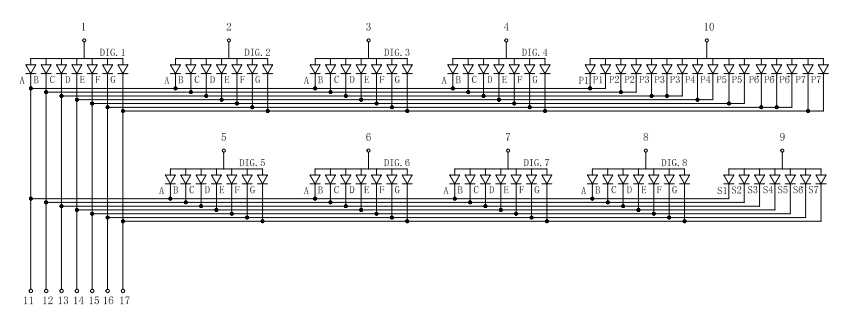

4.智倍多位数码管ZB3332BS红光电路图(Circuit  Diagram)

信恩多位数码管XE3332BS红光电路图

5.智倍多位数码管ZB3332BS红光《QA成品检验方法》:


判定类别
Standard
判定范围
ITEM
MAJORMINOR














Surface check condition
A. 膜纸:不齐、贴歪≥0.25mm。
Membrane:
 not uniform or deflective that must be less than 0.25mm,
B. 引脚氧化或掉铜皮、或不按要求上锡披峰。
The pins are oxygenation or lose copper or cannot meet the SPEC of soldering reliability.
C. 条形歪斜、松脱、脚短/长、膜纸变形、翘起。
Bar deflective, loss, pins short/longer,
 membrane distortion, tilt.
D. 产品弯曲、变形、划伤、毛刺。
Product inflect, scar, burr,

A. 膜纸不齐导致露出或超宽0.25mm内进0.25mm以下,0.15mm以上;脏、皱等。
Make for bare or exceed width between 0.25mm and 0.15mm caused by membrane were not uniform; dirty, ruck etc.
B. 产品反面非有效发光区域有手印、水渍印。
Has the fingerprint or watermark on the background of the product there are not the area of luminous.
尺 寸
检 验
Size check condition
A. 长、宽、厚等重要尺寸超差≥0.2mm,其它尺寸超差在0.25mm以上。
The tolerance of Length, width and thick must ≥0.2mm and other tolerance more than 0.25mm.
B. 膜纸过大在0.25mm以上。
Membrane over than 0.25mm
A. 虚边、毛刺等引起的尺寸超差在0.2mm以下,0.1mm以上。
The size tolerance of product that caused by burr edge shall between 0.1-0.2mm.

B. 小于严重缺陷的尺寸超差。
Less than the important tolerance .
功 能
发 光
效 果
检 查
Functional check condition
A. 管芯发光颜色不符合图纸要求。
The color of luminous is differenced for the SPEC.
B. 闪亮、颜色/色差、暗光、暗带与样板相差较大。
Flash, color, dark light that more difference than the golden sample.
C. 膜纸漏光直径≥0.25。
For the membrane the diameter of light Leakage≥0.25.
A. 轻微色差、暗光、暗带、暗斑。
Minor of the chromatism, dark light, dark spot.
B. 两端部发光不均匀。.
The luminescence is asymmetry at the two ends.

多位数码管引脚图
